Our Products

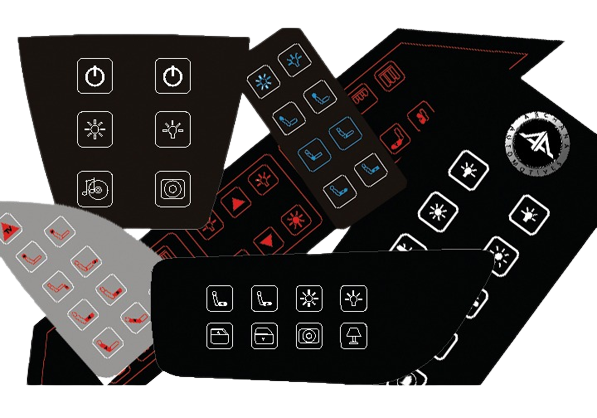

1.Illuminated keypad
In Illuminated keyboards, illumination is achieved by using different colored LEDs (Red, Green, Blue…). They are used in systems where it is necessary to highlight the functions in operation by illuminating the respective keys.
Application:
- Automobile Industry
- Medical Devices
- Access Controls
- Elevators
2.Tactile Membrane Keyboards
Tactile Membrane Keyboard is designed to provide feedback to users. They are made up of stainless-steel domes mounted on printed circuit board. These dome mounted PCBs are covered by suitable graphic overlay, typically reverse printed on polyester / polycarbonate film. Whenever a button is pressed, it completes the circuit and provide degree of response to the user.
Features of PCB Based Tactile Keyboard:
- User-friendly operation (generate feedback)
- Compact and innovative design
- Easy to use and longer life cycle

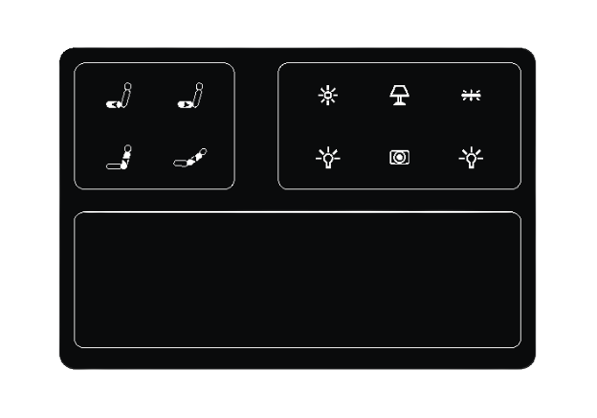

3.Capacitive touch keypads
Capacitive touch keypads consist of one or more capacitive buttons. The capacitive touch buttons/sensors can be printed on a polyester film using conductive ink or can be copper pads on a PCB. These sensors are connected to the IC. When a button is pressed, the IC measures the increase in capacitance and triggers a response.
The main advantage of capacitive touch keypads is that there are no mechanical moving parts, which will eventually wear out. These capacitive sensors are placed underneath any non-conductive overlay material such as AR-1 Acrylic, thick polyester and hard coated polycarbonate, and ABS Plastic, making them virtually indestructible. This construction is also very easy to clean, which makes it a good choice for medical applications.
4.PCB Membrane Keypads
Serving the industry as a pioneer, we manufacture and export PCB Membrane Keypad to meet the growing demands in various industries. This plastic-coated keypad is engraved with copper sheets and mechanically manufactured to support the electronics by using conductive pathways. This PCB Membrane Keypad is made with nonconductive substrate and famous for its longevity and inexpensiveness. These are prepared of excellent quality material with the use of latest technology for superb performance and durability. This product is offered at affordable pricing.
PCB Membrane Keypads Features
Light in weight Durable quality Application in various industries Easy installation
PCB Membrane Keypads Features :
• Light in weight
• Durable quality
• Application in various industries
• Easy installation
5.NET Smart Switch (NSS)
NET Smart Switch (NSS) board controls the relays as per selected input keys (Membrane Keypad or Capacitive keypad or remote keypad). NSS board uses 8-bit low power MCU to control all output relays (10) and input keys (10).
NET Smart switch board is compatible with following different type of keypads.
- Membrane Keypad.
- PCB Based Keypad
- Capacitive Touch Keypad.
- Remote NET IR Keypad (17 Keys / 28 Keys)
NET Smart switch board can also be controlled through Mobile and PC via Bluetooth and WIFI.
Product Type:
- NET Smart switch (5 Channel / 10 Channel)
- NET IR Smart switch (5 Channel / 10 Channel / 20 Channel)

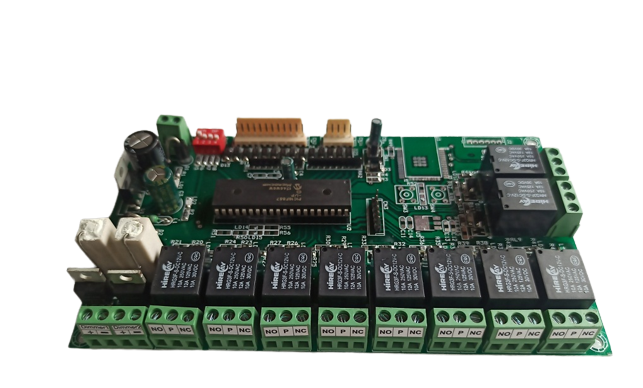

NET Smart Switch (5 Channel/ 10 Channel)
NET Smart switch (5 Channel / 10 Channel)
- NET Smart switch has onboard relays (5 / 10), these relays are suitable for controlling loads whose working voltage is within AC 250V / DC 30V.
- Board has 2 PWM channel to control the intensity of light and speed of FAN. (12 V)
- Input Power supply: +12

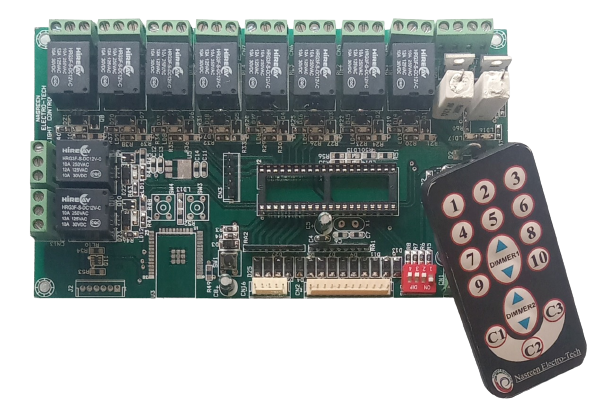

NET IR Smart Switch (5 Channel/ 10 Channel)
NET IR Smart switch (5 Channel / 10 Channel/20 Channel):
- NET Smart switch has onboard relays (5 / 10/ 20), these relays are suitable for controlling loads whose working voltage is within AC 250V / DC 30V.
- Board has 2 PWM channel to control the intensity of light and speed of FAN. (12 V)
- Input Power supply: +12 V
- This board can be controlled through NET IR Remote (17 Keys and 28 Keys).
User can control maximum (5 / 10) relays using NET 17 Keypad (Single board)
User can control maximum 20 relays using NET 28 keypad. (2 Boards 5 / 10 Channel)

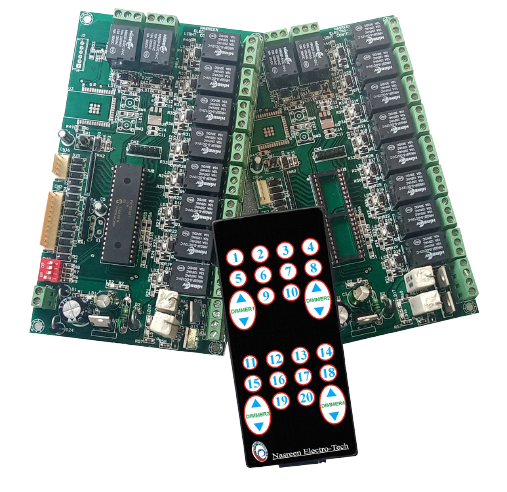

NET IR Smart Switch (20 Channel)

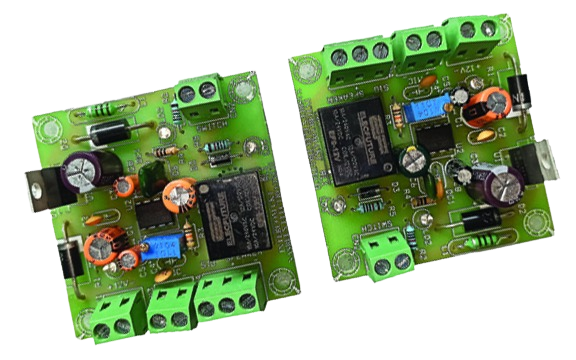

6.Intercom Circuit
Nasreen Electro-Tech Developed wired Intercom Circuit, Mostly used in Car Modification. 2-wire wired intercoms are usually half-duplex only. With only one pair of wires, they have to be used for both transmit and receive.
When one party is talking, the wires are being used to transmit the voice to the other party. Then the wires are used to receive the voice from the other party, and vice-versa.
